NX15 Series BLE Module Overview
The NX15 Series is a compact Bluetooth Low Energy module designed for low-power IoT products, sensors, beacons, wearables, smart home devices, and embedded wireless applications.
It is based on the Nordic nRF54L15 SoC and supports Bluetooth LE 5.4. Depending on the software stack, it can also be used for 802.15.4-based applications such as Thread, Zigbee, and Matter over Thread.
This overview provides a short introduction only. For hardware design, antenna layout, low-power optimization, and application development, continue to the dedicated pages listed below.
When to Use NX15
NX15 is suitable when your product needs:
| Requirement | Why NX15 Fits |
|---|---|
| Compact wireless module | Small LGA module for space-constrained designs |
| Low-power BLE communication | Suitable for battery-powered IoT devices |
| Sensor or beacon behavior | Supports periodic data transmission and BLE advertising |
| Embedded application development | Works with nRF Connect SDK / Zephyr RTOS |
| Flexible antenna option | Available with chip antenna or u.FL external antenna variants |
| Future multiprotocol path | Can support Thread / Zigbee / Matter depending on software stack |
Documentation Flow
Use the NX15 documentation in this order:
| Step | Page | Purpose |
|---|---|---|
| 1 | Quick Start | Bring up the module or DEV-NX15 board |
| 2 | Hardware Design | Review power, GPIO, SWD, reset, and basic PCB design |
| 3 | Antenna Design | Design the chip antenna keep-out or u.FL RF path |
| 4 | Low Power Guide | Optimize sleep behavior, radio timing, and current consumption |
| 5 | BLE Application Guide | Build BLE advertising, GATT, and application-level behavior |
| 6 | Thread / Matter Guide | Use Thread, Zigbee, or Matter over Thread when required |
| 7 | FAQ | Check common issues and troubleshooting notes |
Series Positioning

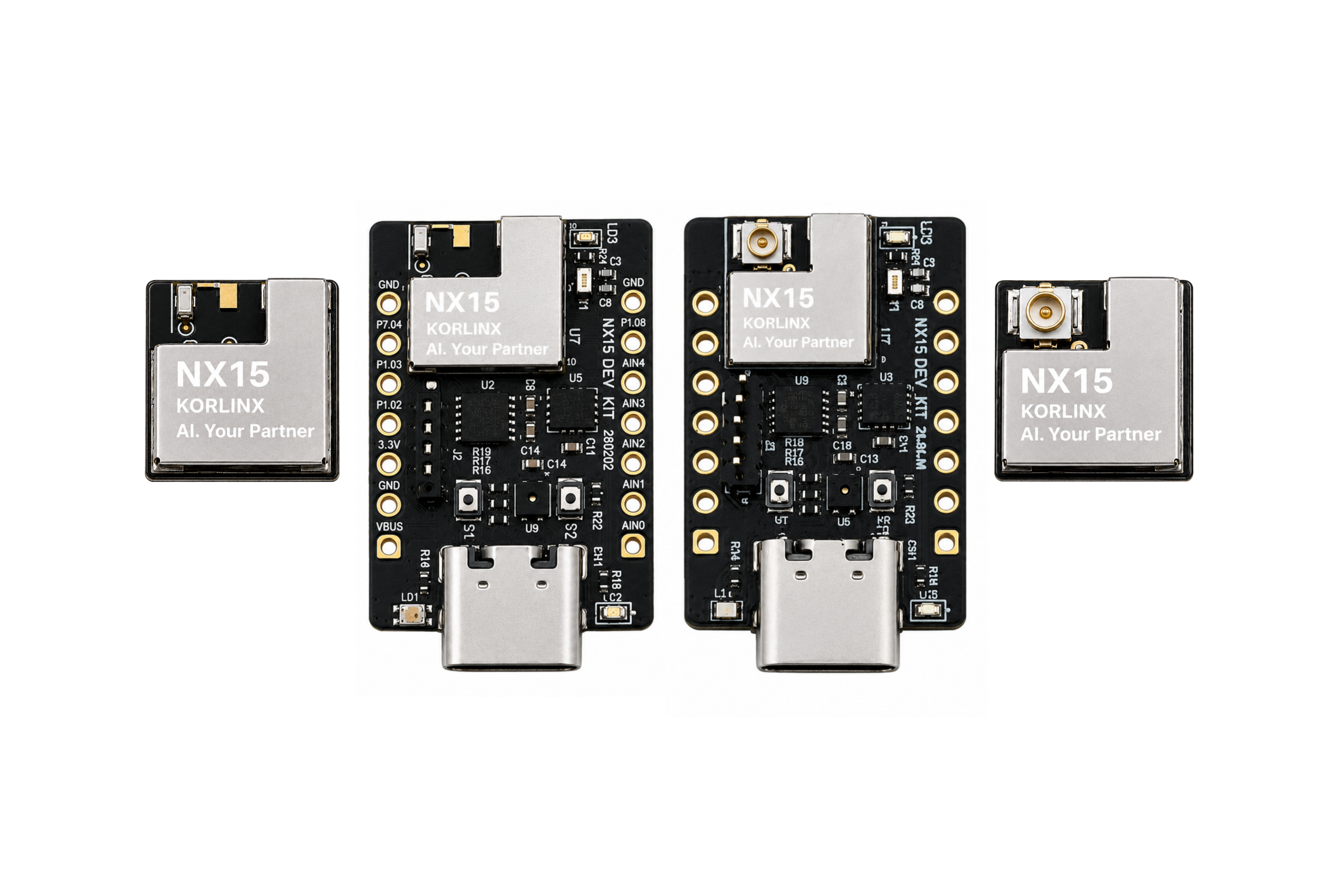

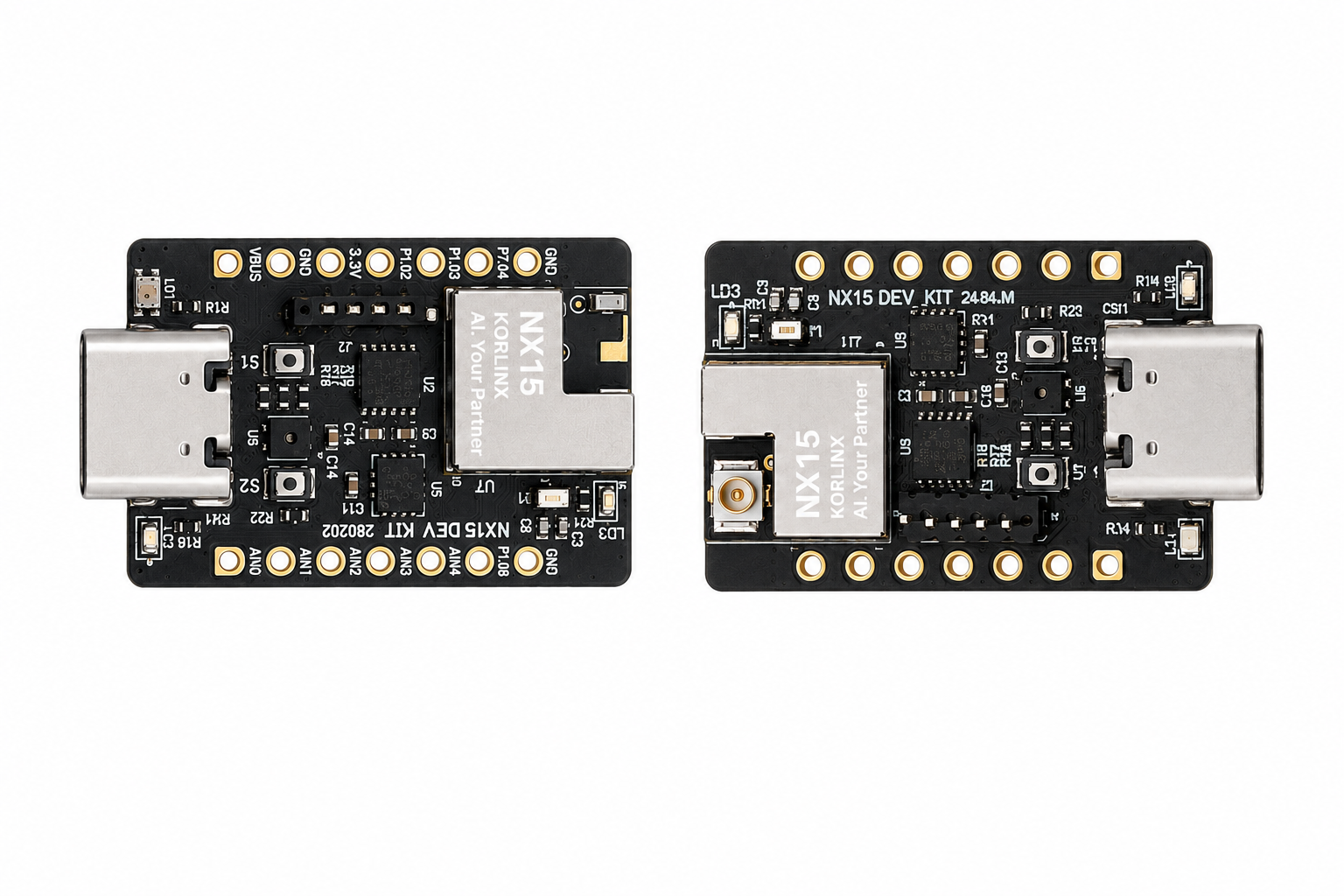

The NX15 Series includes variants for different hardware integration needs.
| Variant Type | Description |
|---|---|
| NX15i Series | Integrated chip antenna variants |
| NX15E Series | u.FL external antenna variants |
| 32 models | Include external SPI Flash |
| 00 models | No external Flash, more focused on compact or full GPIO use cases |
For detailed model selection, use the NX15 Module Integration / Model Selection page.
Next Step
Start with the Quick Start guide if you are preparing a development board, evaluating DEV-NX15, or bringing up NX15 on custom hardware.
