NX40 Module Integration Overview

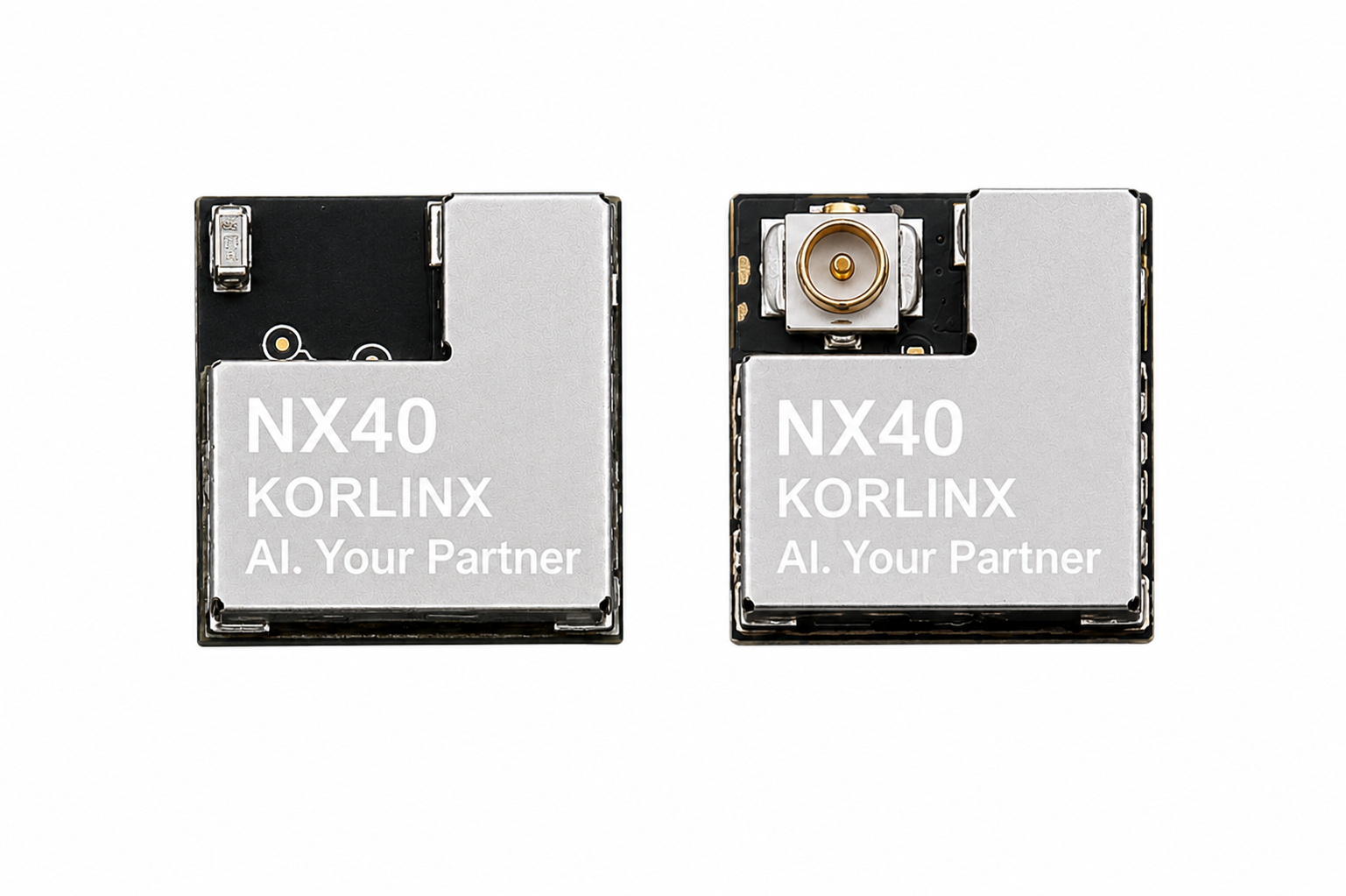

NX40 Module Lineup

This section is for developers and hardware engineers who integrate the NX40 module into a custom PCB or host system.

It focuses on practical module-level integration topics such as model selection, PCB integration, pad/pin planning, antenna-related design checks, handling, soldering, and first prototype troubleshooting.

note

This section is not a general Bluetooth introduction. For BLE concepts, see the Bluetooth Intro page. For product-level usage, see the NX40 Series BLE Module pages.


Who Should Read This Section?

User TypeGoal
Hardware engineerIntegrate NX40 into a custom PCB
Firmware engineerUnderstand board constraints, debug access, and model options
Production engineerPrepare SMT assembly, inspection, and first power-on checks
System integratorValidate power, antenna, programming, and bring-up behavior

Integration Flow

Use the pages in this order:

StepPagePurpose
1Model SelectionChoose the correct NX40 variant
2PCB IntegrationPlan power, ground, debug, reset, GPIO, and antenna area
3Pad / Pin LayoutUnderstand pad/pin groups and required signals
4Handling & SolderingPrepare storage, SMT assembly, reflow, and inspection
5FAQCheck common integration issues

Integration Scope

TopicCovered Here
Model selectionYes
Custom PCB integrationYes
Pad / pin planningYes
Debug and programming accessYes
SMT handling and solderingYes
Basic integration troubleshootingYes
BLE application behaviorNo
Low-power firmware tuningNo
General Bluetooth conceptNo

What This Section Does Not Replace

This section does not replace:

  • Official NX40 datasheet
  • Final schematic and PCB layout review
  • RF validation report
  • Production test procedure
  • Certification test documentation

Use this section as a practical integration guide before moving to board-level validation and production release.
