NX40 Module Overview

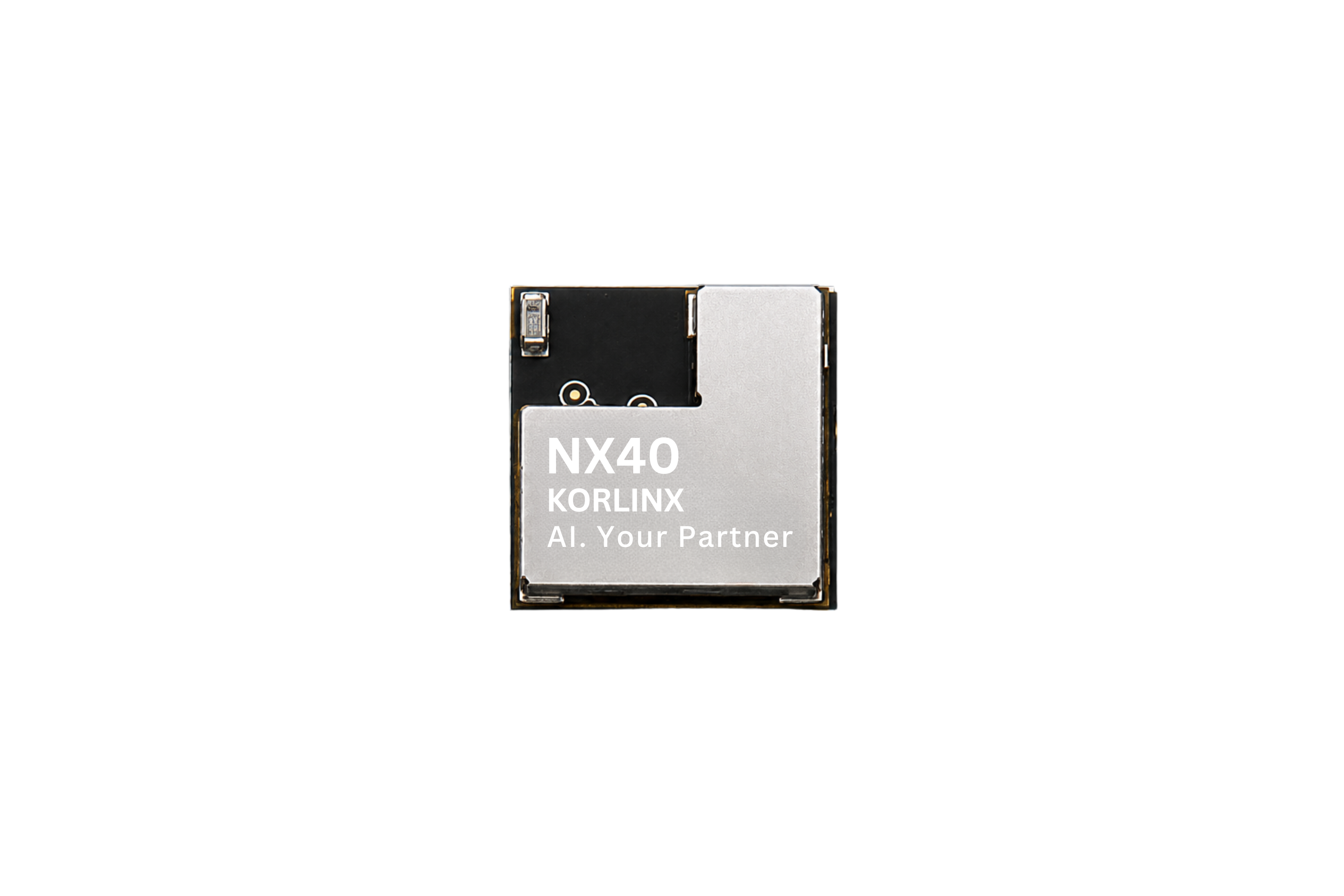

The KORLINX NX40 Series is a compact 2.4 GHz multiprotocol wireless module based on the Nordic Semiconductor nRF52840-CKAA. It integrates the SoC, 32 MHz crystal, RF matching network, shielding, and an antenna connection in a 9.5 × 9.5 mm LGA package.
NX40i models include a ceramic chip antenna. NX40E models route RF to an on-module micro-coax connector. Models ending in 32 add 32 Mbit serial multi-I/O Flash; models ending in 00 omit this memory.
Technical review status: The module routing, mechanical tolerances, module-level electrical characterization, antenna qualification, and production-process limits require approval against the released BOM, PCB, and qualification records before production use.
Main Highlights
- 64 MHz Arm Cortex-M4 processor with floating-point unit
- 1 MB embedded Flash and 256 kB RAM in the nRF52840 SoC
- Bluetooth Low Energy 1 Mbps, 2 Mbps, and coded PHY support
- IEEE 802.15.4 radio capability at 250 kbps
- USB 2.0 full-speed device and common embedded interfaces
- Integrated-antenna and external-antenna options
- Optional 32 Mbit serial multi-I/O Flash
- 9.5 × 9.5 × 1.95 mm nominal LGA module envelope
Protocol availability depends on the released firmware, software stack, qualification, and regional configuration.
Application Examples
| Category | Examples | Status |
|---|---|---|
| Industrial IoT | Wireless sensors, asset monitoring, equipment interfaces | Validate the final application and radio environment |
| Smart building | Lighting, environmental sensing, access and occupancy devices | Protocol stack and certification dependent |
| Consumer and wearable | Human-interface devices and health or fitness peripherals | End-product qualification dependent |
| Connected products | Bluetooth LE, Thread, or Zigbee nodes | Requires an approved software stack |
Model Options
| Model | Antenna | Additional Flash | Description |
|---|---|---|---|
| NX40i32 | Integrated ceramic antenna | 32 Mbit | Integrated antenna with additional serial Flash |
| NX40E32 | External-antenna connector | 32 Mbit | External antenna with additional serial Flash |
| NX40i00 | Integrated ceramic antenna | None | Integrated antenna without additional Flash |
| NX40E00 | External-antenna connector | None | External antenna without additional Flash |
Documentation Flow
| Page | Use it to |
|---|---|
| Specifications | Review electrical, RF, mechanical, memory, and interface information |
| Pin Map | Review external LGA signals and module-internal connections |
| Antenna | Integrate the NX40i chip antenna or select an NX40E external antenna |
| Handling & Soldering | Plan storage, SMT assembly, reflow, and inspection |
