AS-613 Command and Data Reference
This page presents the commands and packet layouts documented in the official AS-613 User Manual, Ver.1.3.1 Jul.2026.
note
Manual scope The manual does not define the Mode 1/2 zone-packet fields, the complete Mode 12 packet, several timing details, or every invalid-value behavior. A host parser must reject frames that do not match a documented layout.
Transport rules
- ASCII commands and data
- Commands in lowercase
- Command terminator: LF or CR
- 8 data bits, no parity, 1 stop bit, no flow control
- Supported baud values: 115200, 230400, 460800, 921600
- Default baud: 460800 bps in the protocol section
- Command-table initial value: 921600 bps
- Command responses begin with
=and end with! - Send the next command after the previous response
- Allow several hundred milliseconds or more after commands that reset or fast-reset the module
Response types
| Response | Meaning |
|---|---|
=<value>! | Query or setting completed |
=OverRange! | Invalid argument count, range, or format |
=UnSupport! | Command unsupported in active mode/mount/work profile |
=UnKnown! | Unknown command or internal queue-registration failure |
=Error! | Internal failure such as flash-write failure |
=Missing! | Missing target parameter, documented for exclusion-zone selection |
=NoTarget! | Requested target does not exist, documented for exclusion-zone selection |
=PresenceClr! | Live presence slots/counter initialized |
Packet identifiers
| Mode | Normal/basic | Waveform/alternate | Vacancy or short state |
|---|---|---|---|
| 1 Wall position | # distance | * zone | #0! |
| 2 Ceiling position | $ distance | ~ zone | $0! |
| 5 Vital | % no waveform | @ waveform | %0!, @0! |
| 6 Vital + position | & no waveform | ? waveform | &0!, ?0! |
| 11 Advanced vital | } no waveform | { waveform | }0!, {0! |
| 12 Restroom | ^ | Not fully documented | ^0! mentioned in setup only |
| 13 Hospital bed | / no waveform | \ waveform | /A! or \A! short states |
| 14 Presence | < distance work | > vital work | <ZZZ!, >ZZZ! |
| Command response | = | - | Ends with ! |
*, ~, and the complete ^ packet are not defined in the supplied manual.
Command reference
Flow and reset
| Command | Documented values | Purpose / notes |
|---|---|---|
start | Runtime | Start data output; also reactivates from idle. Initial frames may contain buffered state. |
stop | Runtime | Stop data output while internal detection continues. |
pwr | 0..3; source discusses defaults 2/3 inconsistently | 0 idle; 1 minimum output; 2 initial/factory output; 3 configured output. Values 1-3 apply immediately. |
reset | - | Software restart, retain settings. |
freset | - | Restore factory settings; changed baud is documented as retained. |
mreset | - | Restore active mode only; other mode settings retained. |
Identification and mode control
| Command | Documented values | Purpose / notes |
|---|---|---|
ver | Query | Return model/date/time/version string. The manual example is not a production requirement. |
info | Query or 1..100 s | No argument: settings blocks. Timed value: real-time coordinates; not supported in Mode 14. |
test | 0, 1 | Test output; 1 reduces wait to 11 s and stops data output, 0 restores default wait. |
wink | Runtime | Blink LED about 10 times at 150 ms intervals. |
mode | 1,2,5,6,11,12,13,14 | Select operating mode. License restrictions apply. |
exten | 0, 1 | Basic/extended packet; Mode 14 adds signed Y. No effect in Mode 12 per summary. |
interval | 1..255 × 100 ms | Output interval; waveform output can force 100 ms. |
wait | 3..43200 s; default 15 | Vacancy/no-target packet interval. |
baud | 115200/230400/460800/921600 | Set UART baud; changed value survives freset and mreset. Use 460800 for the initial connection described by the protocol section. |
Detection sensitivity and persistence
| Command | Documented values | Purpose / notes |
|---|---|---|
sena | 1..1000; default missing | Primary target sensitivity; higher is more sensitive/noise-prone. |
senb | 1..100; default missing | Secondary sensitivity; detailed semantics missing. |
senc | 1..100; default 30 | Minimum reflected-energy percentage accepted as target. |
senin | 1..9; default 6 | Entry confidence; higher can reject false targets but increases acquisition time. |
senout | 2..50 s; default 10 | Target-maintenance time. |
Geometry and orientation
| Command | Documented values | Purpose / notes |
|---|---|---|
xmin | Wall -450..450; ceiling -300..300 cm | Minimum X boundary. Mode/profile-specific limits may differ. |
xmax | Wall -500..500; ceiling -400..400 cm | Maximum X boundary. |
ymin | Wall -450..450; ceiling -300..0 cm | Minimum Y; ceiling uses negative values. |
ymax | Wall -450..450; ceiling -300..0 cm | Maximum Y; ceiling positive values ignored/unsupported. |
zmin | Wall 0..900; ceiling -300..300 cm | Minimum Z; wall uses positive values. |
zmax | Wall 0..900; ceiling -300..300 cm | Maximum Z; wall uses positive values. |
alrmin | -90..0° | Left boundary. |
alrmax | 0..90° | Right boundary. |
adumin | Negative angle; exact table range missing | Down boundary. |
adumax | 0..90° | Up boundary. |
rotate | 0/90/180/270° | Clockwise board rotation correction. |
walltilt | 0..45°; default 0 | Downward wall tilt correction in supported wall modes. |
geometry | Referenced in mode summaries; command row absent | Query/set geometry behavior requires firmware documentation. |
Waveform and vital limits
| Command | Documented values | Purpose / notes |
|---|---|---|
wave | 0, 1; default 0 | Respiration waveform. Documented for Modes 5, 6, 13 and inconsistently for Mode 14. |
pulse | 0, 1; runtime | Pulse aligned to breathing-detection timing; not retained. |
hmax | Row incomplete | Heart-rate detection distance; syntax/default/range absent. |
bmax | Source says default 300 cm, max 600 cm and ≤ zmax | Breathing detection distance. Command examples/ranges are incomplete. |
Mode 12 restroom
| Command | Documented values | Purpose / notes |
|---|---|---|
rstc | 1..30 min; default 5 | Stay-time-over reference. |
rrsh | 100..300 cm; default 220 | Sensor height. |
rrdoorx | -50..50 cm; source default 0 | Entrance X. |
rrdoorz | -40..100 cm; source default 100 | Entrance Z. |
rrdoorwd | 60..120 cm; source default 80 | Entrance detection diameter. |
Mode 13 hospital bed
| Command | Documented values | Purpose / notes |
|---|---|---|
hbinstall | 0 ceiling; 1 wall | Select installation. Wall assumes 170 cm; the angle reference requires confirmation. |
hbsh | 100..300 cm; default 220 | Ceiling sensor height only. |
hbh | 10..69 cm; default 55 | Mattress-top height. At ≤30 cm, floor mattress behavior disables fall detection according to source. |
hbw | 90..160 cm in the Mode 13 description; command table shows 80..1700 | Bed width. Use the Mode 13 installation range unless working with firmware documentation that defines another range. |
hoffset | 1..9 in setup; 5 center | Correct left/right bed shift. The command text uses hoffset; one diagram labels it hboffset. |
wallside | 0 head, 1 left, 2 right | Bed direction; unsupported in wall install where head direction is fixed. |
hbds | Four HRDL bits; default 0000 | Direction disable flags; relationship to wallside requires clarification. |
fallsh | 10..300 cm; 0 restore; default 90 | Fall-detection sensor height; automatic restart. |
falleh | 10..fallsh; 0 restore; default 50 | Exclude positions above this height from fall decision; automatic restart. |
hbfalla | 0/1; default 1 | Fall-risk warning output. |
hbfalls | 0/1; default 1 | Fall-occurrence warning output. |
bedsorea | 0/1; default 1 | Pressure-ulcer-risk warning output. |
bedsores | 0/1; default 1 | High pressure-ulcer-risk warning output. |
hrv | 0/1; default 1 | HRV output. |
Mode 14 presence
| Command | Documented values | Purpose / notes |
|---|---|---|
pmount | 0 wall, 1 ceiling, 2 corner | Select installation profile. |
pwork | 0 distance, 1 vital | Select presence work profile. |
cornerleft | 1..1000 cm; default 300 | Measured left-wall length in corner installation. |
cornerright | 1..1000 cm; default 300 | Measured right-wall length in corner installation. |
doorx | Source general range -300..300 cm; profile-specific | Entrance X or negative left-wall door distance in corner mode. |
doorz | Source general range 0..600 cm; profile-specific | Entrance Z or positive right-wall door distance in corner mode. |
doorwd | 80..150 cm; default 90 | Entrance detection diameter/width; source terminology must be normalized. |
presenceclr | Runtime | Clear live presence slots and vacancy counter. |
Exclusion zones
| Command | Documented purpose | Conflict requiring validation |
|---|---|---|
exzon | Query/disable/enable active profile | Confirm persistence and profile key. |
exzinfo | Query count or slot coordinates | Empty-slot output and slot numbering. |
exzset | Store center/half-width rectangle | Overview uses coordinates without slot; command table appears to use slot first. |
exzpick | Store rectangle around current target | Overview says target 1-5; command table refers to target 0. |
exzdel | Delete slot 1-5 or all with 0 | Confirm sorting and whether 0 also disables function. |
Packet layouts
Lengths below are counts of the displayed fixed-width ASCII templates, including the start marker and !, excluding any trailing CR/LF. They are not measured firmware output lengths. Confirm padding and actual emitted frames before implementing a parser.
Mode 1 - wall position
#ABBBBCCCDDD! 13 bytes
#ABBBBCCCCDDDEEE! 17 bytes, extended
A target; signed X; optional signed Y; positive Z; energy.
Mode 2 - ceiling position
$ABBBBCCCCDDD! 14 bytes
$ABBBBCCCCDDDDEEE! 18 bytes, extended
A target; signed X; optional negative Y; signed Z; energy.
Mode 5 - vital
%ABBBCCDDD! 11 bytes
%ABBBCCDDDDEEEEFFFGGG! 22 bytes, extended
@ABBBCCDEEEFFF! 15 bytes, waveform
@ABBBCCDEEEFFFFGGGGHHHIII! 26 bytes, waveform + extended
Vital state; heart rate; breathing rate; optional pulse/waveform; position and distance/power by variant.
Mode 6 - vital + position
&ABBBBCCCDDDEFFFGG! 19 bytes
?ABBBBCCCDDDEFFFGGHIII! 23 bytes, waveform
Target; signed X; positive Z; energy; vital state; heart rate; breathing rate; optional pulse/waveform.
Mode 11 - advanced vital
}ABBBCCDDEEFFF! 15 bytes
}ABBBCCDDEEFFFFGGGGHHHIII! 26 bytes, extended
{ABBBCCDDEEFGGGHHH! 19 bytes, waveform
{ABBBCCDDEEFGGGHHHHIIIIJJJKKK! 30 bytes, waveform + extended
Vital state; heart rate; breathing rate; RMSSD; SDNN; optional pulse/waveform; position/power by variant.
Mode 13 - hospital bed
/A! short state
/ABBBCCDDEEFFGGHIIJJJ! 22 bytes
\A! short waveform-state
\ABBBCCDDEEFFGGHIIJJJKKK! 25 bytes
State; heart rate; breathing rate; optional external SpO2 and temperature; RMSSD; SDNN; external-device fields; temporary data; optional respiration waveform.
Mode 14 - presence
<ZZZ! vacant duration, hexadecimal minutes
<ABBBBCCCDEEEFFFGGG! 20 bytes
<ABBBBCCCDEEEFFFGGGHHHH! 24 bytes, extended Y
>ZZZ! vacant duration, hexadecimal minutes
>ABBBBCCCDEEEFFFGGGHHHIIJJJ! 28 bytes
>ABBBBCCCDEEEFFFGGGHHHIIJJJKKKK! 32 bytes, extended Y
Presence slot; signed X; Z; status; hexadecimal presence/non-detection time; temporary data; optional closest-person heart/breath/waveform; optional signed Y.
State values
Vital state in Modes 5 and 6
| Value | Meaning in source |
|---|---|
| 0 | No target |
| 1 | Target moving |
| 2 | Target, no valid vital signal |
| 3 | Target, valid vital signal |
| 4 | Fall detection |
Mode 11 packet tables list only 0-3. The meaning, availability, and algorithm behind state 4 in Modes 5/6 are not described.
Hospital-bed state
| Value | Meaning in source |
|---|---|
| 0 | Bed empty |
| 1 | Standing beside/outside bed |
| 2 | Sitting or lying beside/outside bed |
| 3 | On bed, awake |
| 4 | On bed, tossing/turning |
| 5 | On bed, sleeping |
| 6 | Bed fall-risk warning |
| 7 | Bed fall occurrence |
| 8 | Pressure-ulcer-risk warning |
| 9 | High pressure-ulcer-risk warning |

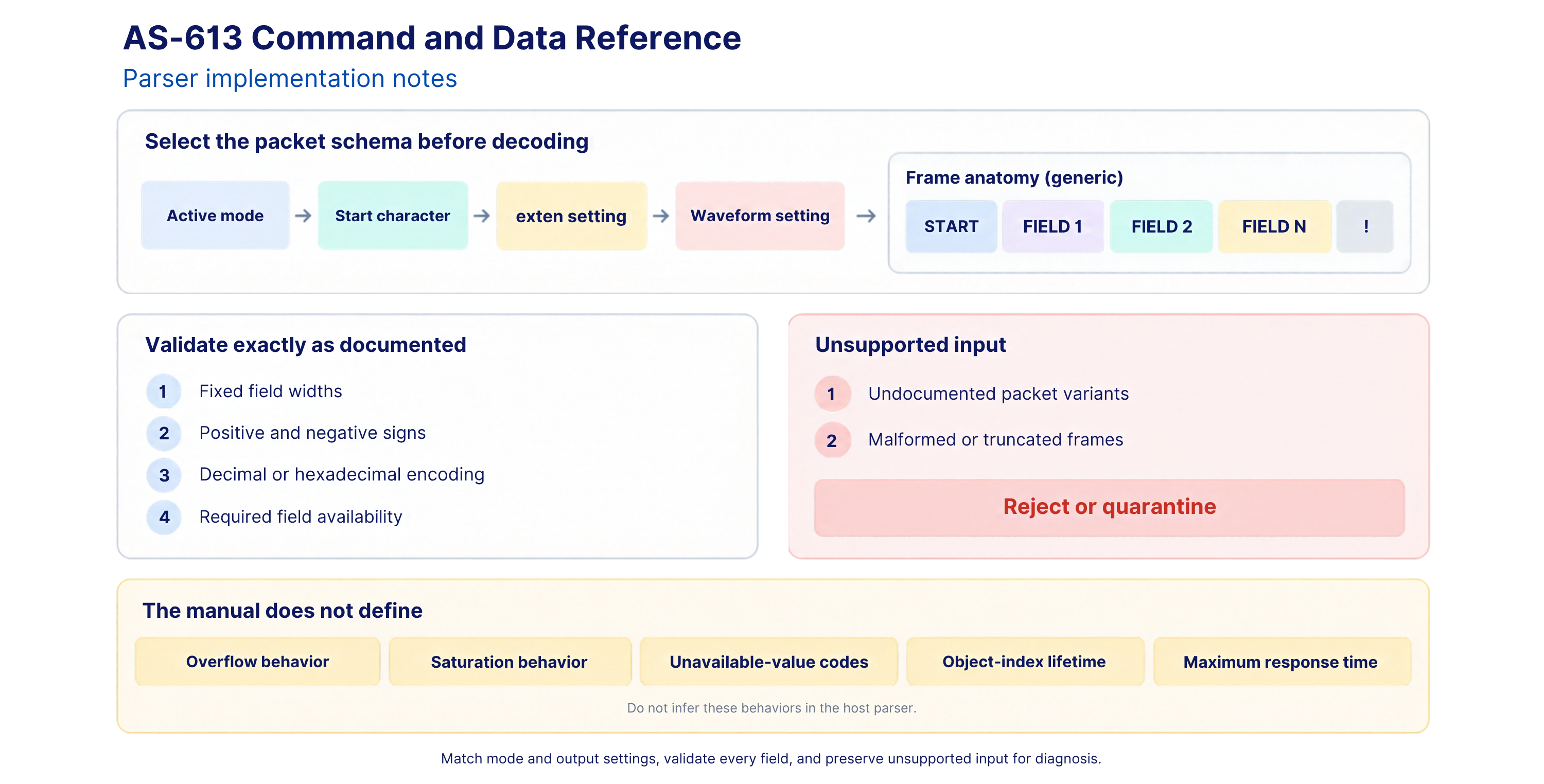

Parser implementation notes
- Match the active mode, start character,
extensetting, and waveform setting before decoding a frame. - Validate fixed widths, signs, and decimal or hexadecimal fields exactly as shown.
- Treat undocumented packet variants and malformed frames as unsupported input.
- The manual does not define overflow, saturation, unavailable-value codes, object-index lifetime, or maximum response time.
Use the active mode, start character, frame length, and settings to select the correct parser schema.
