AS-BW Overview

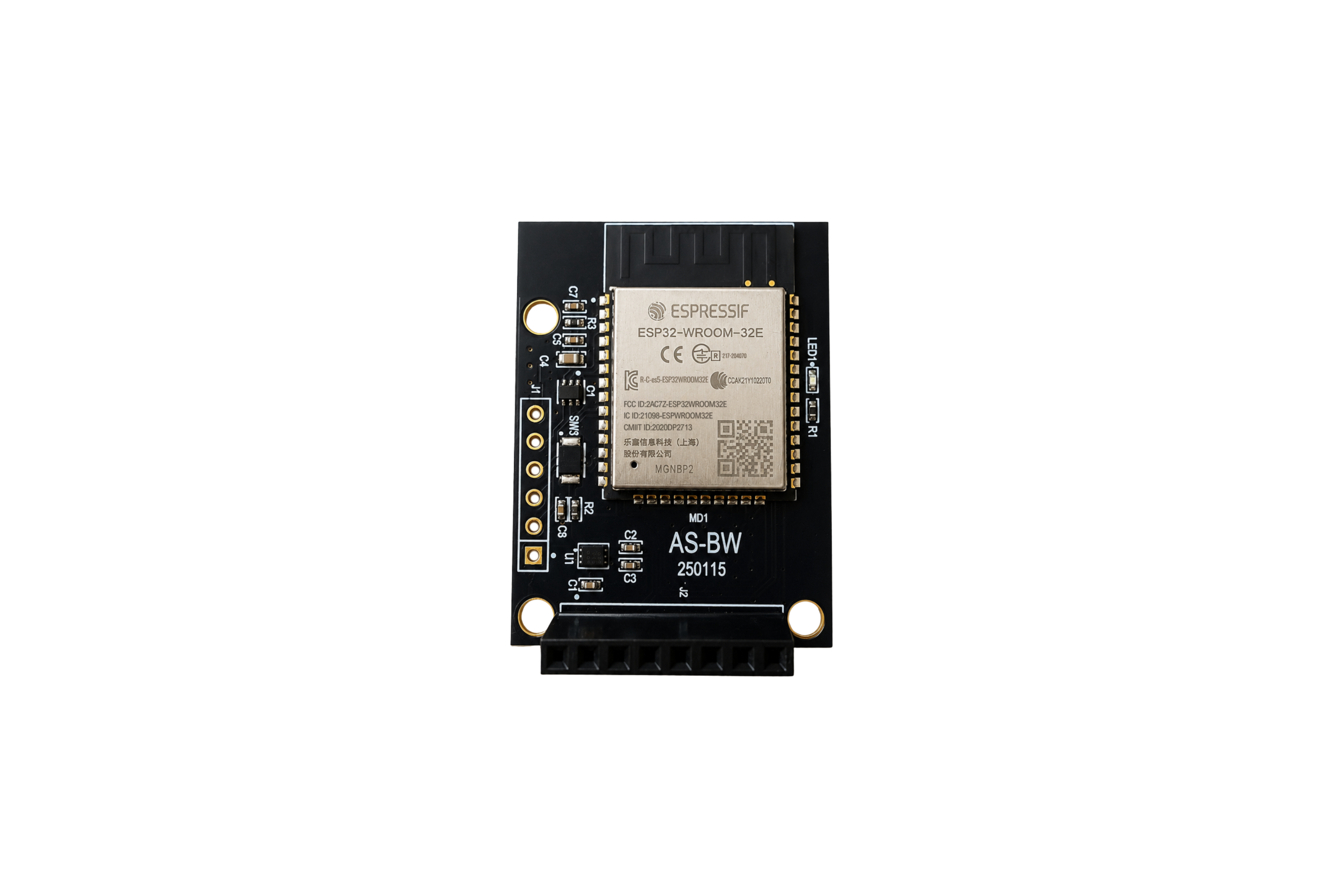

The AS-BW is a Bluetooth and Wi-Fi communication module, not a radar. It connects to a radar module through UART and forwards the radar stream over 2.4 GHz Wi-Fi. It provides radar interworking and IoT bypass; radar analysis remains on the radar module.
Specifications
| Item | Specification |
|---|---|
| Class | Bluetooth / Wi-Fi communication module |
| Radio | Bluetooth 4.2; 2.4 GHz Wi-Fi only |
| Radar interfaces | GPIO and UART |
| Function | Radar interworking, Bluetooth / Wi-Fi, and IoT bypass |
| Size | 32 × 40 × 4.25 mm |
| Supply / power | 3.3–7 V / maximum 700 mW |
| Operating temperature | −40 to 85 °C |
| Chipset / MCU | [TBD] |
| Certification | [TBD] |
| Reference manual | User Manual v0.10, January 2025 [TBD] |
| Supplied items | Control software, viewer application, and ceiling bracket |
Documented limitations
The AS-BW user manual incorrectly lists the model name as AS_614 in its specification table. This is a documentation error; the manual describes AS-BW. A source-document correction is pending.
AS-BW and its viewer application were under active stabilization during 2026. Confirm the installed firmware and viewer versions before investigating a field problem, because a corrected build may already exist.
Next step
Continue to AS-BW Quick Start to connect a radar, prepare the site network, configure Wi-Fi and MQTT, and troubleshoot field connectivity.
